Preface

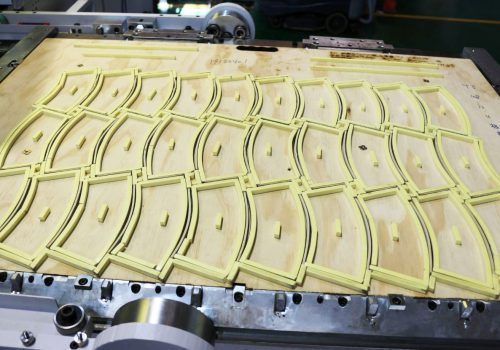

Die Cutting Machines play a crucial role in post-press processing, primarily responsible for cutting, creasing, or punching printed sheets or paperboards according to the design mold, shaping them into the desired final product. This technology is widely used in the production of packaging boxes, paper bags, labels, and other products.
However, during actual operation, die-cutting failures are sometimes unavoidable, affecting production efficiency and product yield. The renowned American inventor and entrepreneur, Thomas Edison, once said, “I have not failed. I’ve just found 10,000 ways that won’t work.” Learning and growing from failures is the foundation of future success. This article explores four common die-cutting failure scenarios, their possible causes, and corresponding solutions to help the industry improve die-cutting quality.
1. Incomplete or Uneven Cutting
1-1. Problem Details
- Some areas of the product are not fully cut through, resulting in remaining connections that require extra force to separate.
- Inconsistent cutting depth not only affects the product’s appearance but also causes difficulties in subsequent folding and assembly processes, reducing production efficiency.
1-2. Possible Causes
- Insufficient cutting pressure:
The pressure system of the die-cutting machine is not properly adjusted or calibrated, leading to uneven pressure distribution on the material, resulting in incomplete cuts. - Blade wear:
Continuous use over time causes wear or deformation of the cutting blade, reducing its sharpness and making it unable to effectively penetrate and cut the material. - Uneven cutting plate or cushion:
Prolonged pressure exposure causes localized indentations or deformations in the cutting plate or cushion, leading to uneven force distribution during cutting, affecting cutting quality and accuracy. - Paper thickness variations:
Discrepancies between the material specifications and the original design, or variations in thickness between different batches, prevent the pre-set pressure from adapting to the material’s characteristics, resulting in poor cutting quality.
1-3. Solutions
- Parameter adjustments:
Carefully assess and accurately adjust the die-cutting machine’s pressure settings. Perform tests to ensure uniform pressure distribution so that all cutting areas achieve optimal cutting results. - Blade maintenance:
Establish a regular maintenance schedule for the cutting blades, including timely replacement of worn blades and periodic sharpening to maintain the cutting tool’s optimal condition. - Cutting plate management:
Regularly inspect the cutting plate and cushion’s condition, replacing any deformed or damaged parts immediately. Ensure the installation is level to maintain consistent cutting quality. - Material control:
Strictly control raw material specifications, ensuring that the material thickness and properties meet design requirements. If necessary, adjust machine parameters based on material characteristics for optimal cutting results.
2. Rough or Frayed Cutting Edges
2-1. Problem Details
- The cut edges are rough with visible fraying and tearing marks, affecting the product’s appearance quality.
- Multi-layered paper structures are not cleanly cut, with fiber pulling impacting the final product’s integrity and subsequent processing.
2-2. Possible Causes
- Dull cutting blade:
Prolonged use or improper maintenance results in blade dullness, preventing smooth and clean separation of material fibers during cutting. - Improper pressure setting:
Incorrect pressure settings directly impact the cutting outcome. Insufficient pressure results in incomplete cuts, while excessive pressure causes unnecessary material deformation and tearing. - Inappropriate paper moisture content:
The moisture content of the material significantly affects cutting quality. Overly dry paper tends to produce debris, while excessively high moisture content weakens the paper’s structure, leading to deformation during cutting. - Unsuitable cutting cushion material:
The choice of cushion material directly affects cutting accuracy. Excessively hard cushions increase blade wear and impact cutting depth, while overly soft cushions fail to provide sufficient support, leading to uneven cuts.
2-3. Solutions
- Regular maintenance:
Implement a comprehensive blade management system, routinely inspecting, maintaining, and replacing cutting blades to ensure they remain sharp for clean cutting results. - Parameter adjustments:
Precisely adjust the die-cutting machine’s pressure settings according to material characteristics and processing needs. Conduct multiple test runs to achieve the optimal cutting condition. - Environmental control:
Strictly regulate production environment temperature and humidity, ensuring paper materials are stored in optimal conditions. Maintain paper moisture content between 8%-12% to ensure consistent cutting quality. - Material selection:
Carefully select suitable cutting cushion materials based on the characteristics and requirements of the processed material. Regularly assess their condition to ensure the cushion’s hardness and thickness remain optimal.
3. Excessive or Insufficient Creasing
3-1. Problem Details
- Excessive creasing causes visible cracks or damage to the paper surface, severely affecting product structural integrity and aesthetics.
- Insufficient creasing fails to form clear fold lines, making subsequent folding difficult, reducing production efficiency, and potentially affecting final product assembly precision and appearance.
3-2. Possible Causes
- Improper gap between creasing rule and counterplate:
If the gap is too large, the creasing pressure is insufficient, failing to create a clear fold line. If the gap is too small, excessive compression may damage or tear the paper surface. - Paper thickness variations:
If creasing parameters are not adjusted in real time based on actual paper thickness, inconsistent creasing depths may occur, affecting product uniformity and processing quality. - Blade wear:
Over time, creasing blades may wear, deform, or become dull, preventing them from forming ideal crease lines on the paper surface.
3-3. Solutions
- Gap adjustments:
Evaluate different material thicknesses and properties to precisely adjust the gap between the creasing rule and counterplate, ensuring optimal creasing results. - Specification management:
Establish a complete material specification management system, selecting the most suitable creasing tool combinations for different paper types and thicknesses. Standardize parameter settings accordingly. - Equipment maintenance:
Implement a regular equipment maintenance plan, including detailed inspections of creasing blades, timely replacement of worn parts, and periodic assessments of blade conditions to ensure optimal machine performance.
4. Misalignment Issues
4-1. Problem Details
- The final product shows noticeable misalignment compared to the original design, affecting the precision of product assembly and causing discrepancies between printed graphics and actual cut positions, which severely impact product quality and appearance.
- Die-cut edges do not align correctly with printed patterns, reducing visual appeal and possibly interfering with subsequent processing steps.
4-2. Possible Causes
- Inaccurate paper positioning:
The automatic feeding system may have mechanical wear or electronic control deviations, causing misalignment in the positioning system and affecting paper feeding accuracy. - Machine miscalibration:
Errors during die-cutting equipment installation, or mechanical shifts over prolonged use, may lead to misalignment between the die and reference position. - Paper size variations:
Temperature and humidity fluctuations in the production environment can cause uneven shrinkage or expansion of paper materials, resulting in positioning errors during processing.
4-3. Solutions
- Regular maintenance:
Establish a thorough equipment maintenance plan, routinely inspecting and calibrating feeder system parameters, including sensor sensitivity adjustments and mechanical component checks, to ensure high positioning accuracy. - Standard calibration:
Develop standardized calibration procedures, periodically checking and adjusting the die-cutting machine’s reference positions to maintain precise alignment between the die and printed patterns, enhancing product quality. - Environmental control:
Strictly regulate the production workshop environment, install temperature and humidity monitoring systems, and take necessary precautions to prevent environmental factors from affecting paper material dimensions, ensuring processing stability.
Conclusion
Die-cutting machines play an essential role in print finishing! However, various frustrating issues can arise during operation, such as incomplete cuts, rough edges, excessive or insufficient creasing, and positioning errors. These problems are often caused by poor machine maintenance, incorrect parameter settings, unstable environmental conditions, or insufficient material management.
To enhance die-cutting quality and production efficiency, SBL Machinery recommends the following measures: conducting regular machine maintenance, accurately adjusting parameters, strictly controlling the working environment, and establishing a comprehensive material management system. These steps may seem tedious, but implementing them systematically can effectively prevent various die-cutting issues. If you encounter any difficulties with your die-cutting machine, please contact us immediately! SBL Machinery is committed to providing the most professional solutions with the fastest response to resolve every issue you face!
