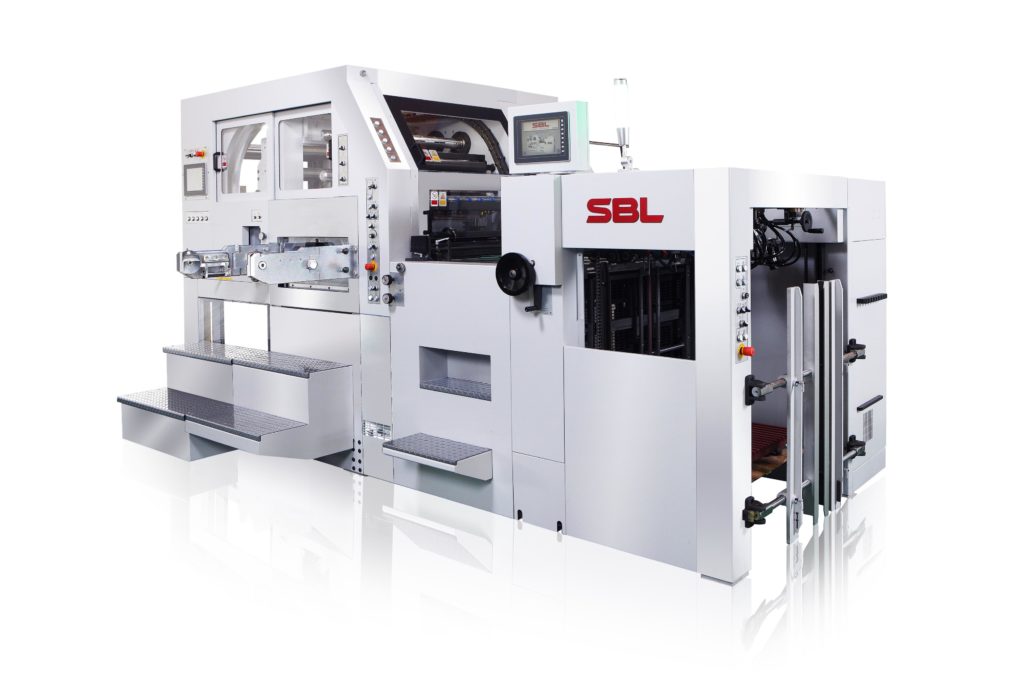

SBL-1060EF

Automatic Foil Stamping and Diecutting Platen Machine

Max. paper size1060mm × 760mm
Min. paper size400mm × 350mm
Max. die-cutting paper size1045mm × 745mm
Min. gripper margin11mm
Die-cutting force300 Tons
Inner size of die chase1075mm × 769mm
Cutting plate size1076mm × 756mm
Range of material thickness0.1mm~2mm (80~1400gsm)
Corrugated paperUp to 4mm
Height of cutting rules23.6mm
Max. punching speed8000S/H
Register tolerance±0.075mm
Main power20KVA
Feeder pile height with pallet1350mm
Feeder pile height with pallet (without non-stop)1650mm
Delivery pile height1350mm
Outer size of machine(mm)5885L × 2310W × 2619H
Machine weight (approx.)20Tons
