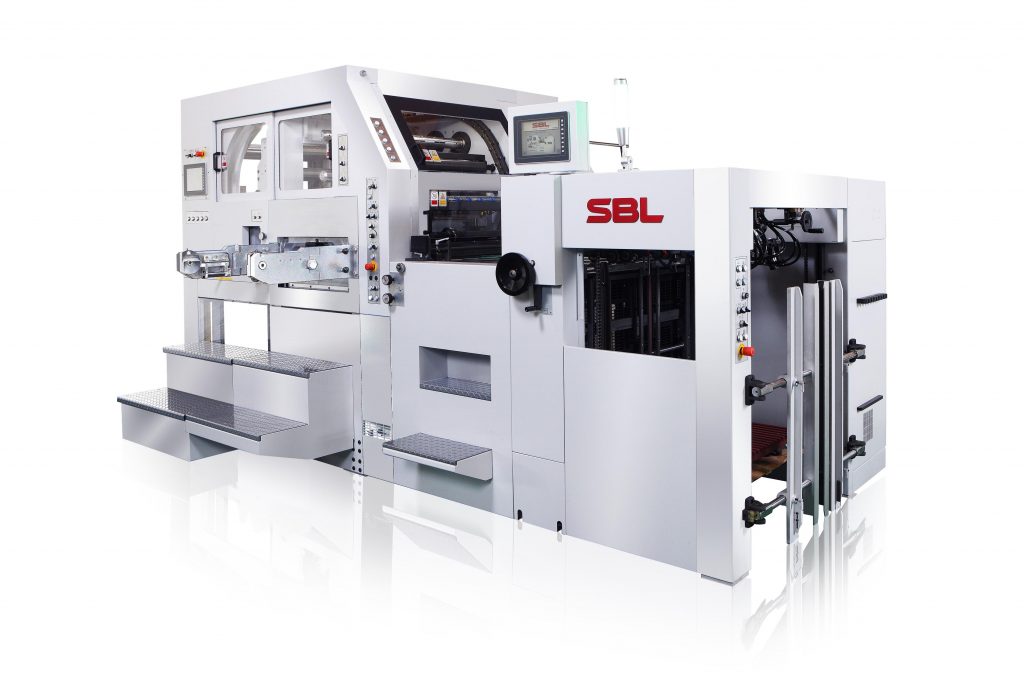

SBL-820EF

Automatic Platen Foil Stamping and Die Cutting

Max. paper size815 x 605 mm
Min. paper size320 x 280 mm
Max. die-cutting paper size805 x 590 mm
Min. gripper margin9.5mm
Die-cutting force200 Tons
Inner size of die chase926 x 618 mm
Cutting plate size848 x 600 mm
Range of material thickness0.1mm~2mm (80~1400gsm)
Corrugated paper≦4mm
Height of cutting rules23.6mm
Max. punching speed8000S/H
Register tolerance±0.075mm
Feeder pile height with pallet1200mm
Feeder pile height with pallet (without non-stop)1300mm
Delivery pile height1040mm
Small sheet device (option)

Longitudinal puller shafts3
Traversal puller shafts
Hologramnot available
Max. foil diameterφ240mm
Rewind shafts3
Max. rewind diameterφ260mm
Max. stamp speed6500S/H
Heating zones8zones
Total power30KVA
Outer size of machine(mm)4174L × 1869W × 2366H
Machine weight (approx.)10Tons
