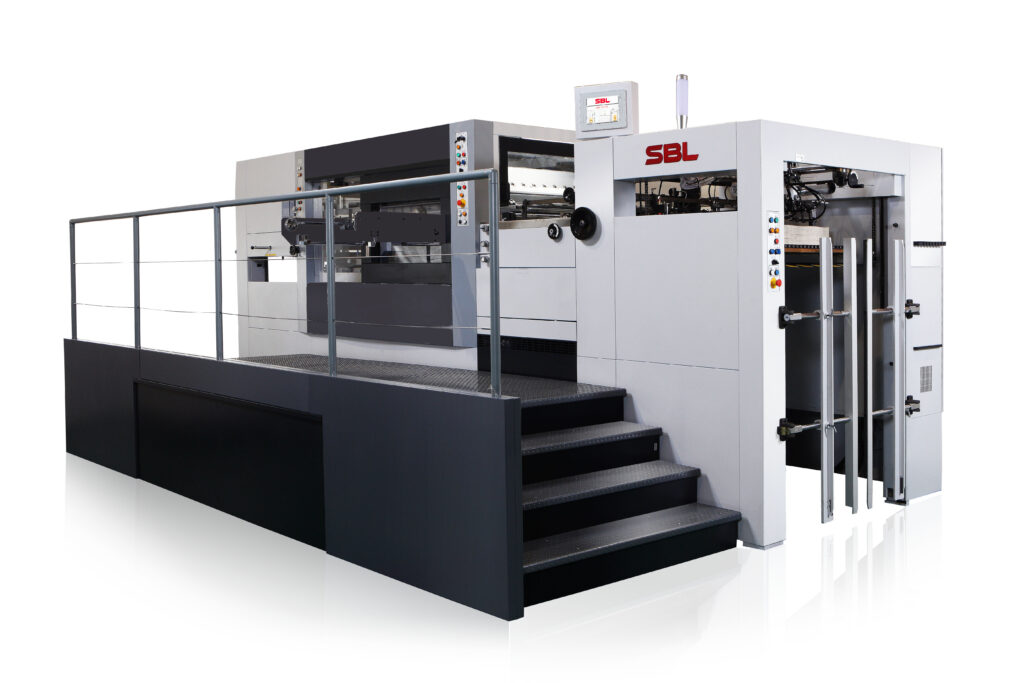

SBL-1060SE

Automatic Die Cutting and Creasing Platen

Max. paper size1060 x 760 mm
Min. paper size400 x 350mm
Max. die-cutting paper size1045 x 745 mm
Min. gripper margin11mm
Die-cutting force300 Tons
Inner size of die chase1075 x 769 mm
Cutting plate size1076 x 756 mm
Range of material thickness0.1mm~2mm (80~1400gsm)
Corrugated paper≦4mm
Height of cutting rules23.6mm
Max. punching speed8000S/H
Register tolerance±0.075mm
Total power20KVA
Outer size of machine
(mm)
5885L × 2204W × 2133H
Machine weight
(approx.)
16.5 Tons
Feeder pile height with pallet950mm
Feeder pile height with pallet
(without non-stop)
1250mm
Delivery pile height950mm
Feeder pile height with 400mm elevation
(option)
1650mm
VersionV.02
Small sheet device
(option)
320mm x300mm
Gripper bite
(minimum)
3mm
