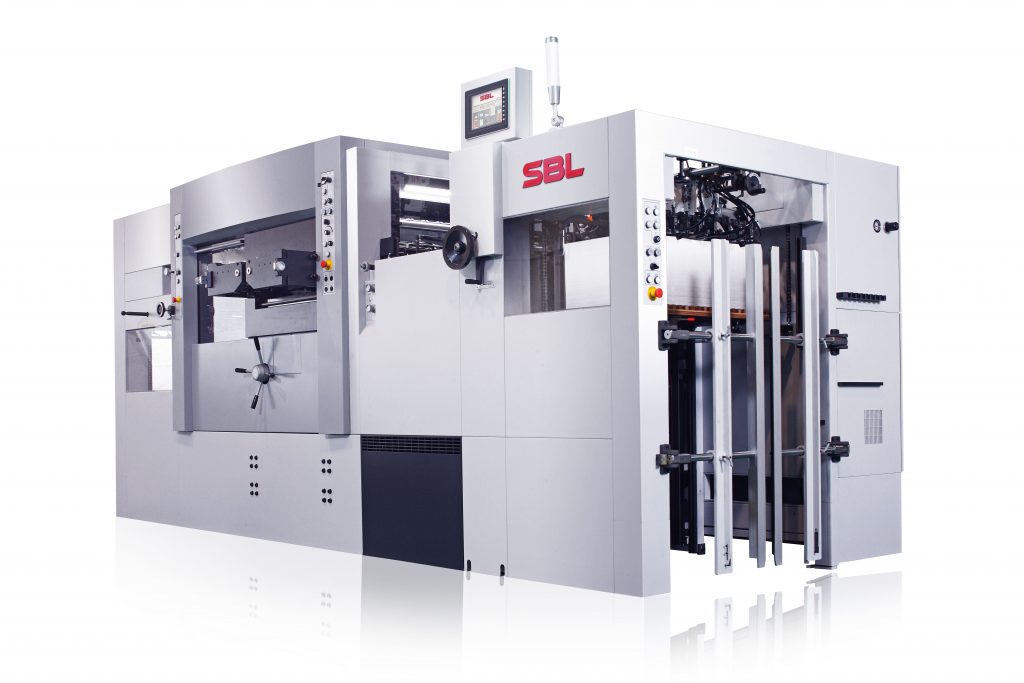

SBL-820SE

Automatic Platen Die Cutting and Creasing

Max. paper size815 x 605 mm
Min. paper size320 x 280 mm
Max. die-cutting paper size805 x 590 mm
Min. gripper margin9.5mm
Die-cutting force200 Tons
Inner size of die chase926 x 618 mm
Cutting plate size848 x 600 mm
Range of material thickness0.1mm~2mm (80~1400gsm)
Corrugated paper≦4mm
Height of cutting rules23.6mm
Max. punching speed8000S/H
Register tolerance±0.075mm
Total power15KVA
Outer size of machine(mm)5017L × 1869W × 1844H
Machine weight
(approx.)
10 Tons
Feeder pile height with pallet900mm
Feeder pile height with pallet
(without non-stop)
1000mm
Delivery pile height740mm
Feeder pile height with 300mm elevation
(option)
1300mm
Version
Small sheet device
(option)
Gripper bite
(minimum)
3mm



FEEDER
REGISTER DEVICE
DIE-CUTTING SECTION
STRIPPING DEVICE
DELIVERY SECTION
TOUCH SCREEN MONITOR SYSTEM
SHEET SLOW DOWN DEVICE ON FEED TABLE
