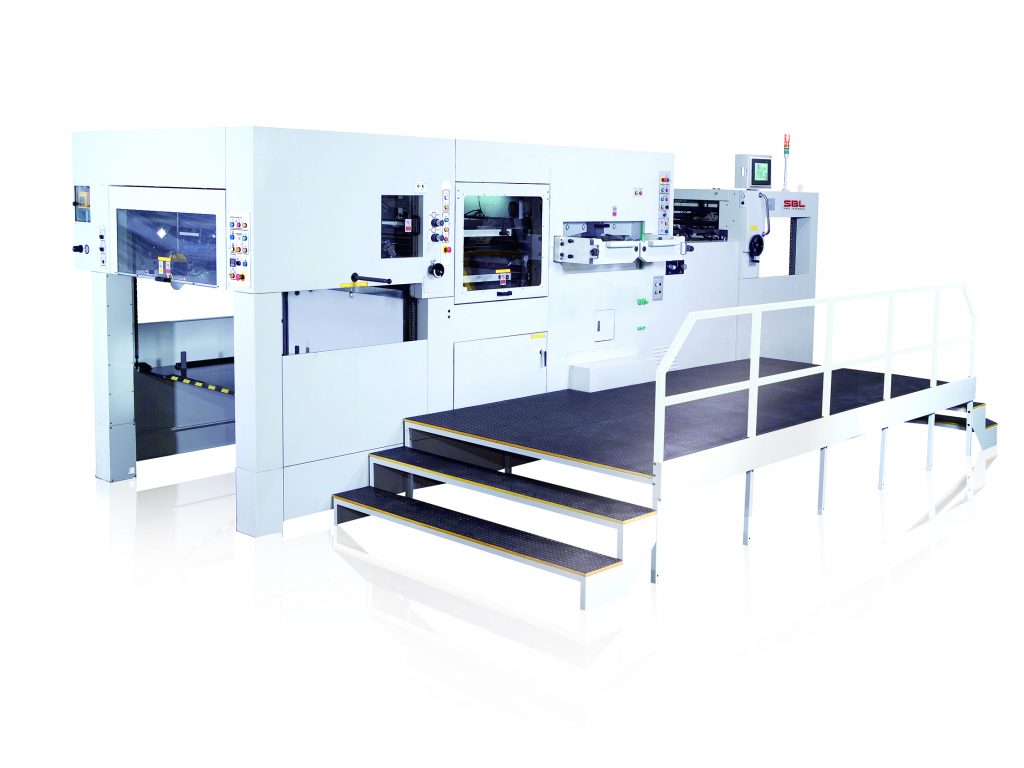

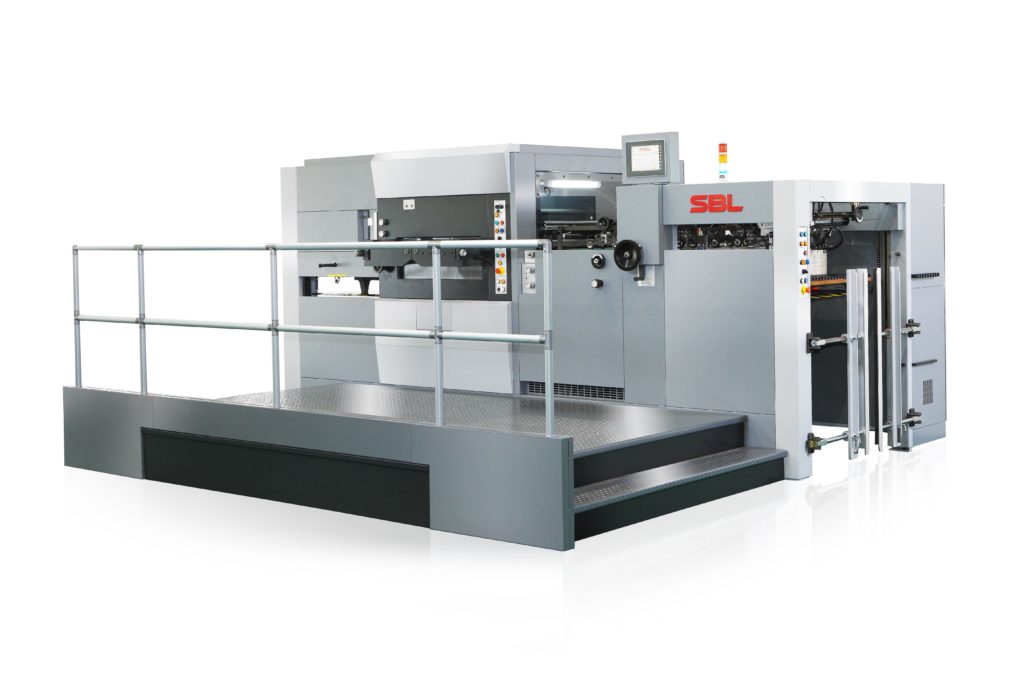

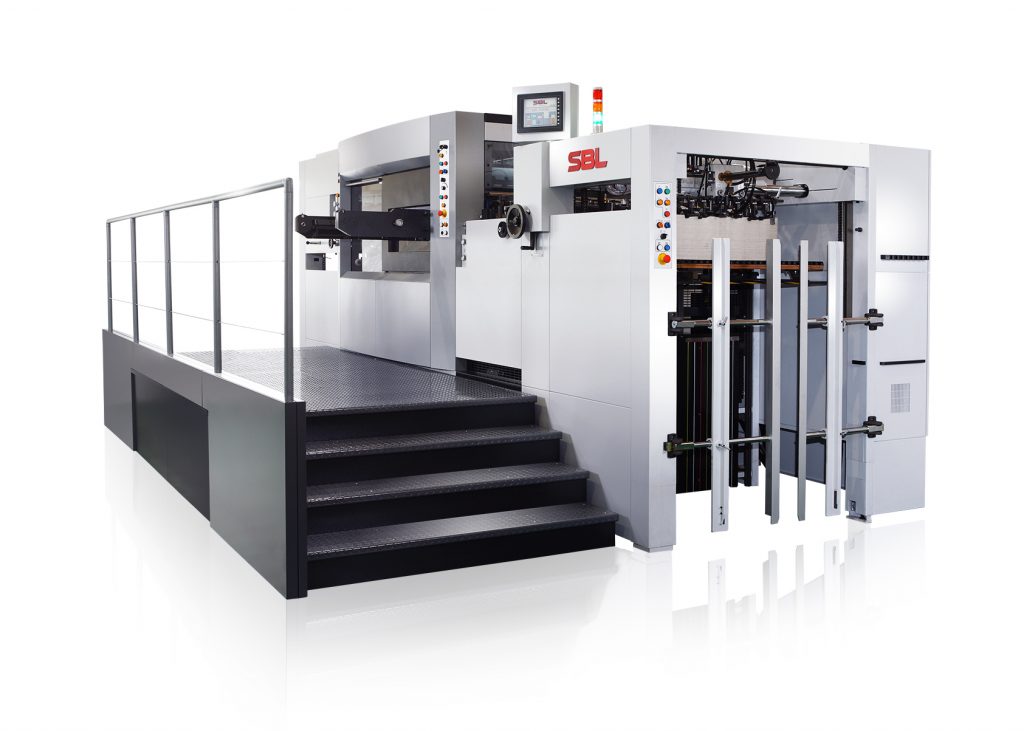

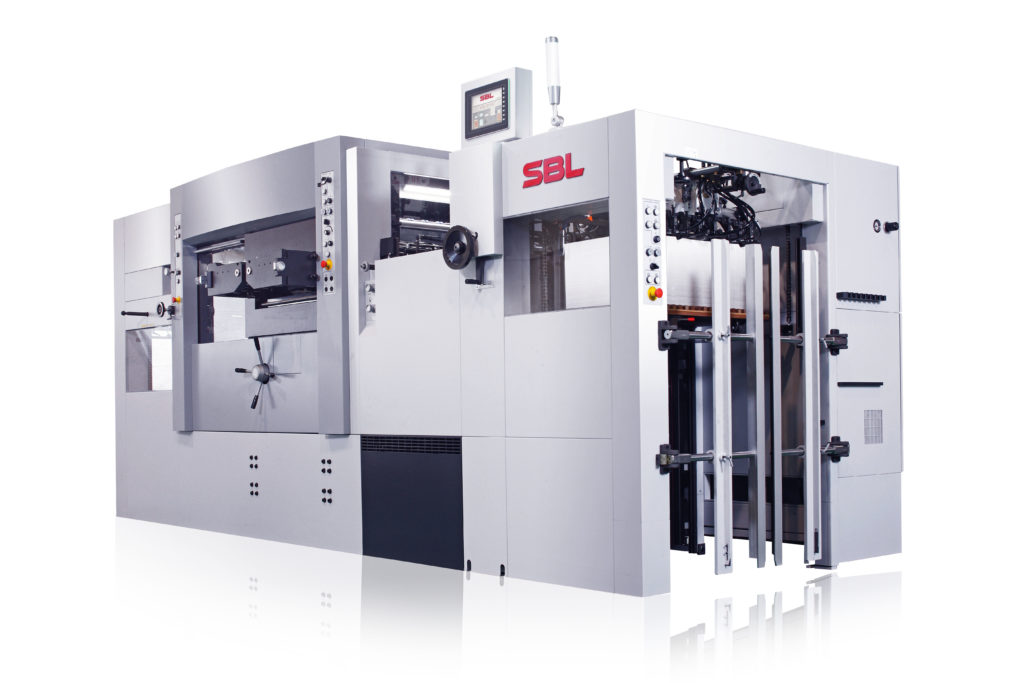

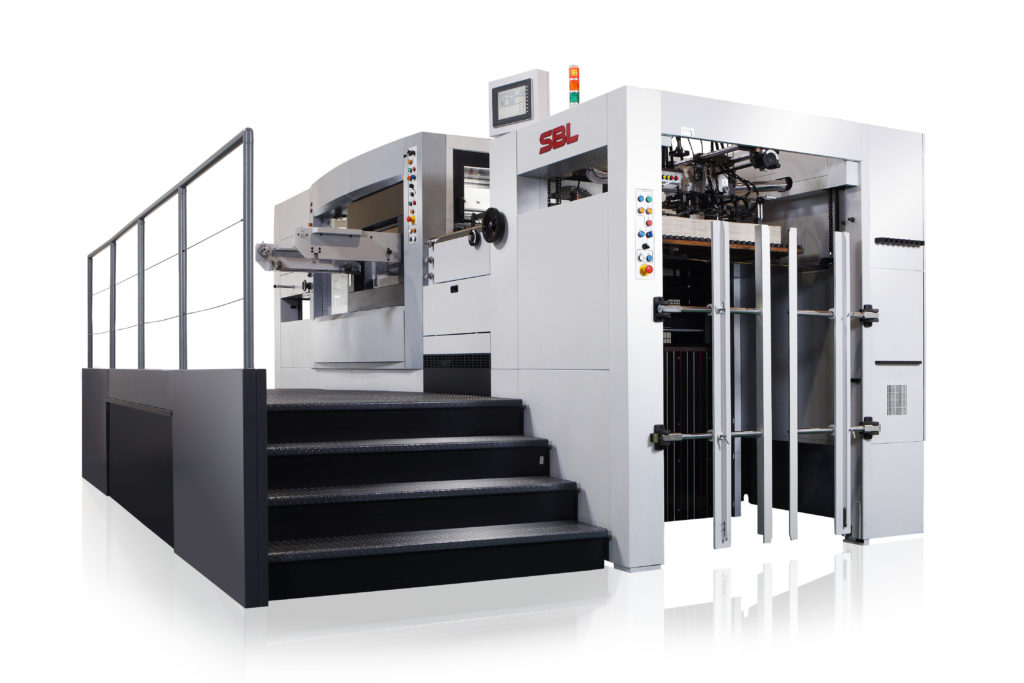

SBL-1050SE​

Automatic Platen Die Cutting and Creasing

Max. paper size1050 x 750 mm
Min. paper size400 x 370 mm
Max. die-cutting paper size1040 x 730 mm
Min. gripper margin9.5mm
Die-cutting force300 Tons
Inner size of die chase1144 x 760 mm
Cutting plate size1080 x 736 mm
Range of material thickness0.1mm~2mm (80~1400gsm)
Corrugated paper≦4mm
Height of cutting rules23.6mm
Max. punching speed7500S/H
Register tolerance±0.075mm
Total power20KVA
Outer size of machine(mm)5683L × 2204W × 2132H
Machine weight
(approx.)
16 Tons
Feeder pile height with pallet1000mm
Feeder pile height with pallet
(without non-stop)
1200mm
Delivery pile height840mm
Feeder pile height with 300mm elevation
(option)
1500mm
VersionV.02
Small sheet device
(option)
350mm x300mm
Gripper bite(minimum)3mm



FEEDER

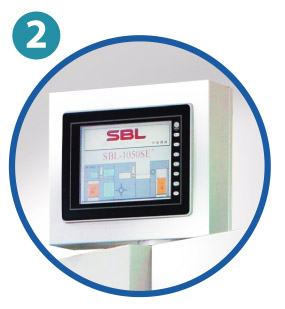

TOUCH SCREEN MONITOR SYSTEM

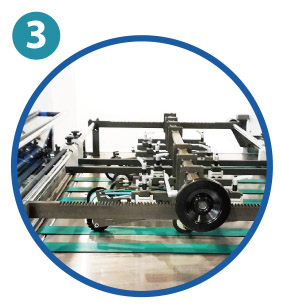

REGISTER DEVICE
SHEET SLOW DOWN DEVICE ON FEED TABLE
DIE-CUTTING SECTION
STRIPPING DEVICE
DELIVERY SECTION
