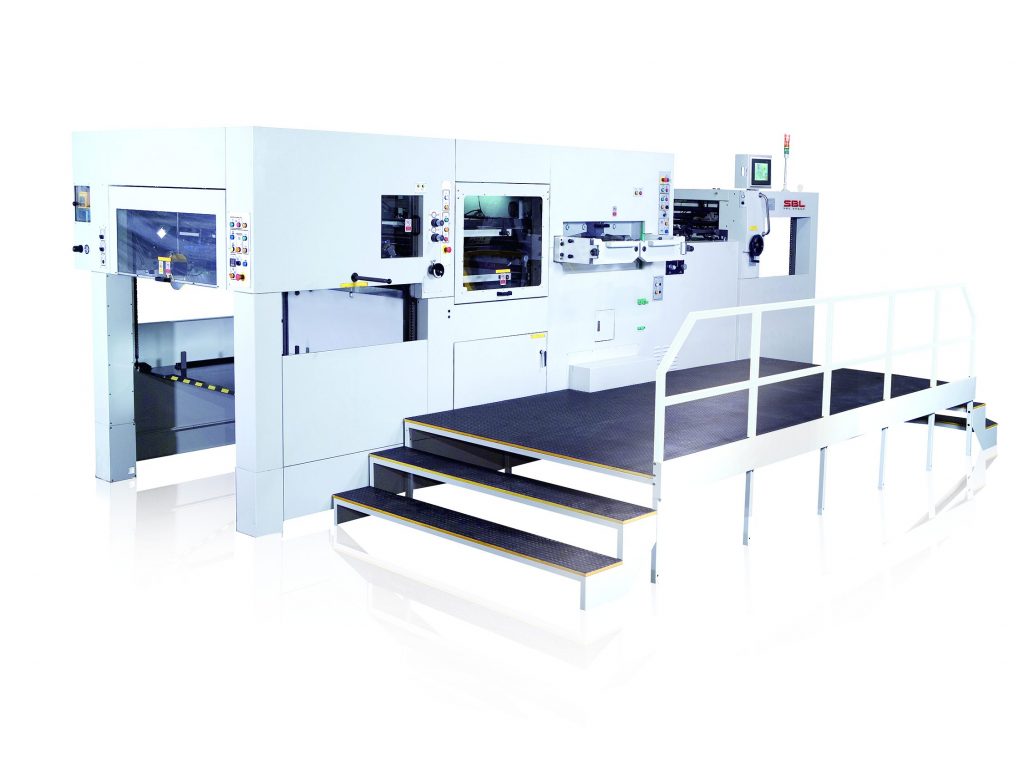

SBL-1300SE

Automated Platen Die Cutting and Creasing

Max. paper size1300 x 950 mm
Min. paper size600 x 450 mm
Max. die-cutting paper size1290 x 940 mm
Min. gripper margin9.5mm
Die-cutting force500 Tons
Inner size of die chase1420 x 958 mm
Cutting plate size1328 x 940 mm
Range of material thickness0.1mm~2mm (80~1400gsm)
Corrugated paper≦4mm
Height of cutting rules23.6mm
Max. punching speed6000S/H
Register tolerance±0.075mm
Total power30KVA
Outer size of machine
(mm)
6769L × 2170W × 2244H
Machine weight
(approx.)
23 Tons
Feeder pile height with pallet1000mm
Feeder pile height with pallet
(without non-stop)
1000mm
Delivery pile height840mm
Feeder pile height with 350mm elevation
(option)
1550mm
VersionV.01
Small sheet device
(option)
Gripper bite
(minimum)
3mm



FEEDER
TOUCH SCREEN MONITOR SYSTEM
REGISTER DEVICE
SHEET SLOW DOWN DEVICE
PNEUMATIC CHASE LOCKING & AUTOMATIC IMPRESSION ON/OFF SYSTEM
DIE-CUTTING SECTION
STRIPPING DEVICE
DELIVERY SECTION
