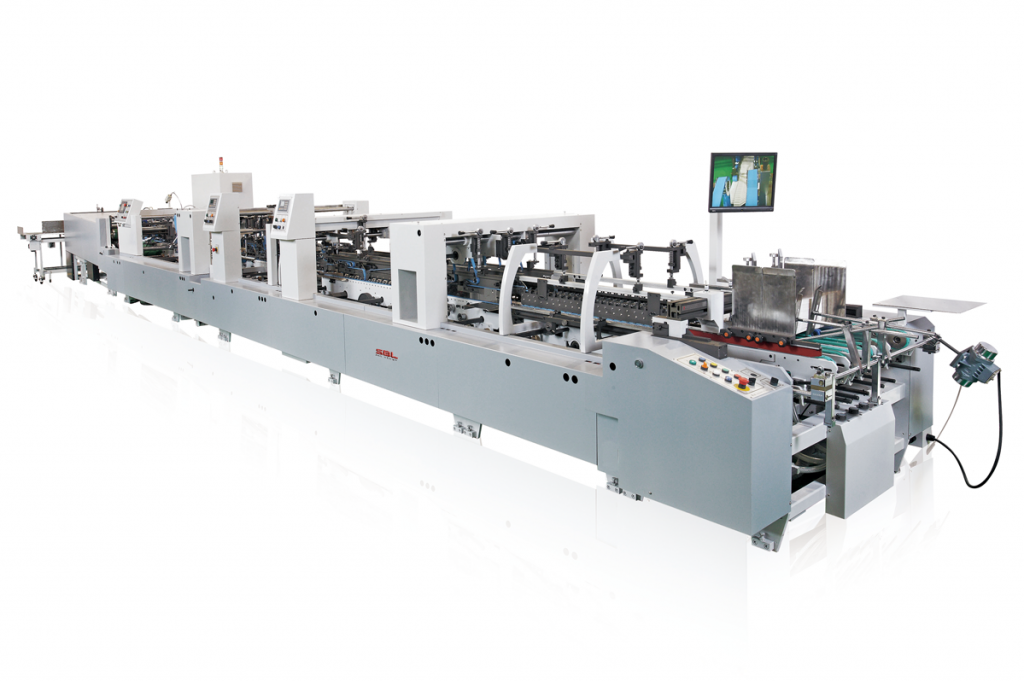

High Speed Folding and Gluing Machine
TS-1000WN
Pre-FoldingNo.1 Creasing line 180°
No.3 Crease °
Stock Type | Cardboard, E-flute corrugated and decorated board |
Folding Capability | Folding Capability |
Maximum Speed | MAX. 300 m/min |
Feeding | Automatic and continuous feeding. |
Glue Type | (For Glue Pot) Water based glue. |
Glue System | Consult glue system supplier. |
Power Required | 8KW、AC 220V |
Machine Weight | 8500Kg |
1. Equipped with wireless remote control and screw rod that can be easily operate.
2. Heavy duty timing belt, high efficiency, low noise, durability and easy to maintain.
3. Upper gluing pots of unique design for special purpose gluing.
4. TS-1000DW with 4 upper gluing pots can manufacture multiple glued boxes. TS-1000W with upper gluing pots is for bottom gluing boxes and double-wall boxes.
5. The lower gluing pots on both sides are equipped with a fine device for special boxes.
6. Easy to operate, even for untrained operator. Specially designed mechanism permits bottom and both sides gluing.
7. Sponge-covering soft-touch with inside compression system for glue joint and delivery conveyor. (accessory transfer delivery device is available).
8. Photo-electric counter installed for preset counting and kicker device.
*For general reference; customer’s specific designs are welcomed.
