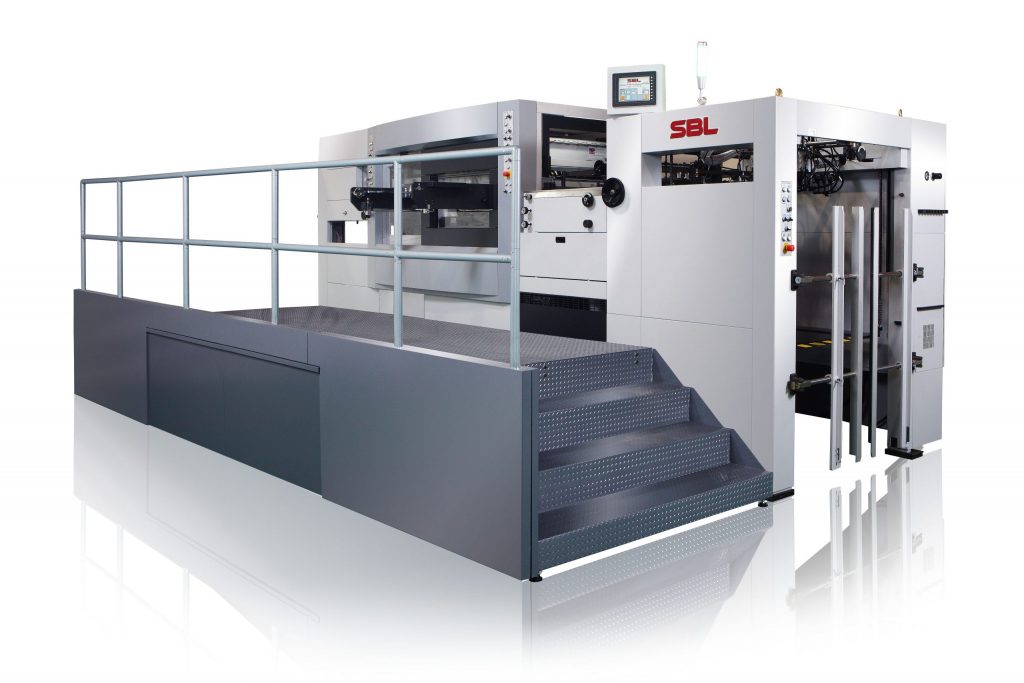

SBL-1060SEB
Automatic Die Cutting with Blanking or Stripping Machine
SPECIFICATIONS
Description | Die Cutting with Blanking System |
Max. paper size | 1060 x 760 mm |
Min. paper size | 400 x 350 mm |
Max. die-cutting paper size | 1045 x 745 mm |
Min. gripper margin | 11mm |
Die-cutting force | 300 Tons |
Inner size of die chase | 1075 x 769 mm |
Cutting plate size | 1076 x 756 mm |
Range of material thickness | 0.1mm~2mm (80~1400gsm) |
Corrugated paper | ≦4mm |
Height of cutting rules | 23.6mm |
Max. punching speed | 7000S/H |
Register tolerance | ±0.075mm |
Variable speed main motor | 11.00KW |
Other power required | 10.75KW |
Outer size of machine(mm) | 5885L × 5051W × 2533H |
Catwalk size | 5885L x 1880W |
Machine weight (approx.) | 16.5 Tons |
Feeder pile height with pallet | 1350mm (with non-stop), 1650mm(w/o non-stop) |
Delivery pile height | 1350mm |
Small sheet device (option) | 320 x 300 mm |
Gripper bite (minimum) | 3mm |
FEATURES
1. Wide feeding range from 400mm x 350mm to 1060 x760mm
2. Non-stop device for feeder and delivery station for production efficiency
3. High machine speed running steady at 8,000 sheets per hour
4. Simple adjustable four pick-up and four forward suckers
5. Fiber optic sensors from Keyence
6. Front lay register device can calibrate the sheet feeding
7. 2-in-1 push or pull side guide device on both sides
8. Touch screen monitor with computerized self-diagnostic system
9. Digital adjusted cutting pressure according to the stocks
10. Various stock cutting range from thin paper to B-flute
11. Counter plate aircushion withdrawing system
12. Automatic in place of chase uploading system
13. Automatic in place of gripper bite opening system
14. The brush and joggle device at delivery station can line up the sheet pile
15. Highly safe and reliable machine
16. Equipped with PLC control system, monitoring machine statuses and control most critical components with sensor feedback ensure optimal safety and smooth operation
