Preface
The Hot Stamping Machine is an indispensable piece of equipment in post-press processing. It is primarily used to transfer metallic foils (typically in gold, silver, or specialty colors) onto surfaces such as paper, plastic, and leather using high temperature and pressure, thereby enhancing the product’s texture and visual appeal. Hot stamping technology is widely applied in the production of high-value-added items such as luxury packaging boxes, labels, book covers, and greeting cards.
However, in real-world production, hot stamping results are not always satisfactory. Common issues such as blurry patterns, uneven embossing, and incomplete transfers can significantly affect the appearance and quality of the finished product. As Kiichiro Toyada, the founder of Toyota Motor Corporation, once said: “Every problem is a treasure. Each failure is an opportunity for improvement.” Only through analyzing and resolving these issues can we continuously optimize our processes and product quality.
This article explores four common hot stamping failures, investigates their potential causes, and provides corresponding solutions to help the industry enhance both stamping quality and production efficiency.
1. Incomplete or Uneven Hot Stamping Patterns
Example: When producing high-end luxury packaging boxes, if a gold brand logo is incompletely stamped, parts of the letters may be missing or lines broken. This undermines not only the visual appeal but also the brand image. For instance, the intended “luxury” logo might appear as “lu ury” due to uneven transfer.
1-1. Problem Details
- The foil fails to adhere completely to the material, resulting in missing corners, broken lines, or inconsistent color density.
- The overall stamping appears blurry or patchy, lacking metallic luster and sharp edges.
1-2. Possible Causes
- Insufficient or uneven temperature:
The stamping head doesn’t reach the required temperature for foil transfer, or heat is distributed unevenly across the mold. - Insufficient or uneven pressure:
Low or uneven pressure leads to weak bonding and incomplete pattern transfer. - Poor contact between mold and material:
The mold doesn’t fully conform to the material surface due to deformation or an uneven platform. - Inferior or mismatched foil:
Different foils have varied temperature and pressure requirements; the wrong type leads to transfer defects.
1-3. Solutions
- Temperature calibration:
Precisely measure and ensure even heat distribution across the mold to achieve optimal stamping temperature. - Pressure adjustment:

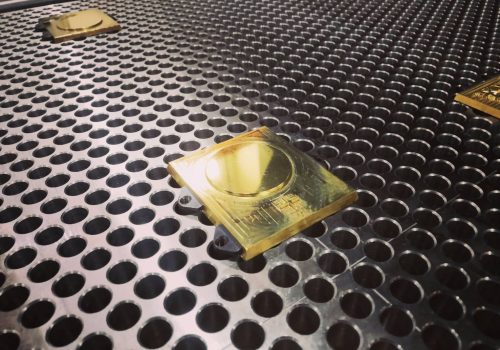

Adjust pressure range and intensity based on material and pattern size for uniform transfer. - Mold maintenance:
Regularly check and resurface molds or replace when needed to ensure tight contact with the material. - Foil selection and testing:
Match foil types with the substrate and use high-quality, stable foil brands.However, most hot stamping machine manufacturers have long-term cooperation with gold foil manufacturers. For example, SBL machinery has long-term cooperation with gold foil manufacturers (such as KURZ (Germany), Univacco (Taiwan).

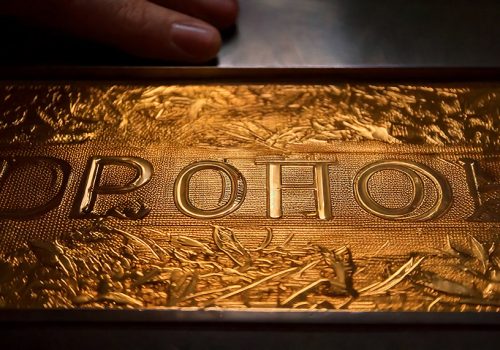

2. Blurred or Bleeding Edges
Example: On a black velvet box for a high-end jewelry brand, gold lettering should appear sharp. If edges are blurry and bleed like ink, the luxury impression is ruined, possibly requiring full reproduction and resulting in material and time waste.
2-1. Problem Details
- Edges appear smudged, blurred, or frayed, losing precision and definition.
- Foil overflows beyond design borders, affecting aesthetics and readability.
2-2. Possible Causes
- Excessive temperature:
Overheating causes foil to melt excessively, leading to bleeding beyond the pattern edges. - Excessive dwell time:
Prolonged pressing allows foil to flow beyond the intended area. - Worn or imprecise molds:
Low-resolution or worn-out molds can’t render clean edges. - Improper surface treatment:
Rough, oily, or dusty surfaces hinder foil adhesion and curing.
2-3. Possible Causes
- Optimal temperature control:
Lower the heat to within recommended limits to prevent over-melting. - Adjust dwell time:
Optimize press duration to avoid foil flow beyond pattern borders. - Mold repair or upgrade:
Re-engrave or replace molds with high precision for better definition. - Surface pretreatment:
Improve surface cleanliness and, if needed, apply primer for better adhesion.
3. Foil Bubbling or Peeling
Example: For a limited-edition luxury watch box, gold foil peeling or bubbling can ruin the box’s appearance. Even if the watch is perfect, such packaging defects may lead to complaints or returns, harming the brand’s premium image.
3-1. Problem Details
- Small bubbles or peeling occur on the stamped surface, resulting in uneven texture or detachment.
- Oxidation or peeling appears shortly after production, diminishing durability and shine.
3-2. Possible Causes
- High moisture content in materials:
Paper or plastic with excess moisture creates steam under heat, leading to bubbling and weak adhesion. - Unstable foil quality:
Poor foil layering causes delamination or bubbling at high temperatures. - Insufficient or uneven pressure:
Weak or uneven pressure fails to bond foil fully with the substrate, causing air pockets or detachment.
3-3. Solutions
- Pre-dry materials:
Enhance drying procedures before processing, maintaining moisture levels below ideal thresholds (e.g., <8%). - Strict foil inspection:
Test each foil batch for structural integrity and heat resistance; choose trusted brands. - Pressure system optimization:
Inspect and recalibrate pressure systems to ensure even and sufficient pressing.
4. Misaligned Hot Stamping Position
Example: When producing 500 wedding invitation cards for a premium design studio, misaligned stamping ruins the coordination between names, event info, and decorative elements. Misaligned prints may exceed cut lines, requiring costly and time-sensitive reprints, and damage the studio’s professional image.
4-1. Problem Details
- The stamped pattern is skewed or out of alignment, disrupting the intended visual balance.
- Misalignment with printed content, creases, or cutting lines results in inconsistent final products.
4-2 Possible Causes
- Inaccurate positioning system:
Auto-alignment systems or sensors may be imprecise, causing feed or placement errors. - Incorrect mold installation:
The stamping die is not fixed correctly on the reference point or shifts during setup. - Material deformation:
Warping due to prolonged storage or unstable temperature/humidity affects alignment. - Improper step settings (jump setting):
Inaccurate feed distances or step increments can accumulate over runs, causing systematic misalignment. Common reasons include low encoder precision, dirty feed rollers, incompatible material sizes, uncalculated thermal deformation, or poorly spaced foil margins.
4-3 Solutions
- System calibration:
Regularly calibrate alignment systems and test sensors to maintain accuracy. - Mold installation checks:
Improve mold setup procedures to ensure alignment with reference points. - Environmental and storage control:
Optimize temperature and humidity, reduce idle time to prevent warping. - Step optimization:
Inspect and correct feed inaccuracies: check encoder condition, clean rollers, match material size with feed steps, account for thermal expansion, and calculate foil margins accurately. Calibrate regularly and monitor during continuous production to avoid cumulative errors.
Conclusion
The hot stamping process plays an irreplaceable role in enhancing product quality and perceived value. However, improper operation or lack of maintenance can lead to a series of issues that compromise the final product’s quality.
To ensure both hot stamping quality and production efficiency, SBL Machinery recommends implementing the following measures: regular equipment maintenance, precise control of temperature and pressure settings, strict mold and foil management protocols, and establishing stable material and environmental control processes. By continuously optimizing these key details, most common hot stamping defects can be effectively prevented.
If you encounter any difficulties in operating your hot stamping machine, please don’t hesitate to contact us! SBL Machinery is committed to providing the most professional service and technical support to help you overcome every challenge in the hot stamping process.
