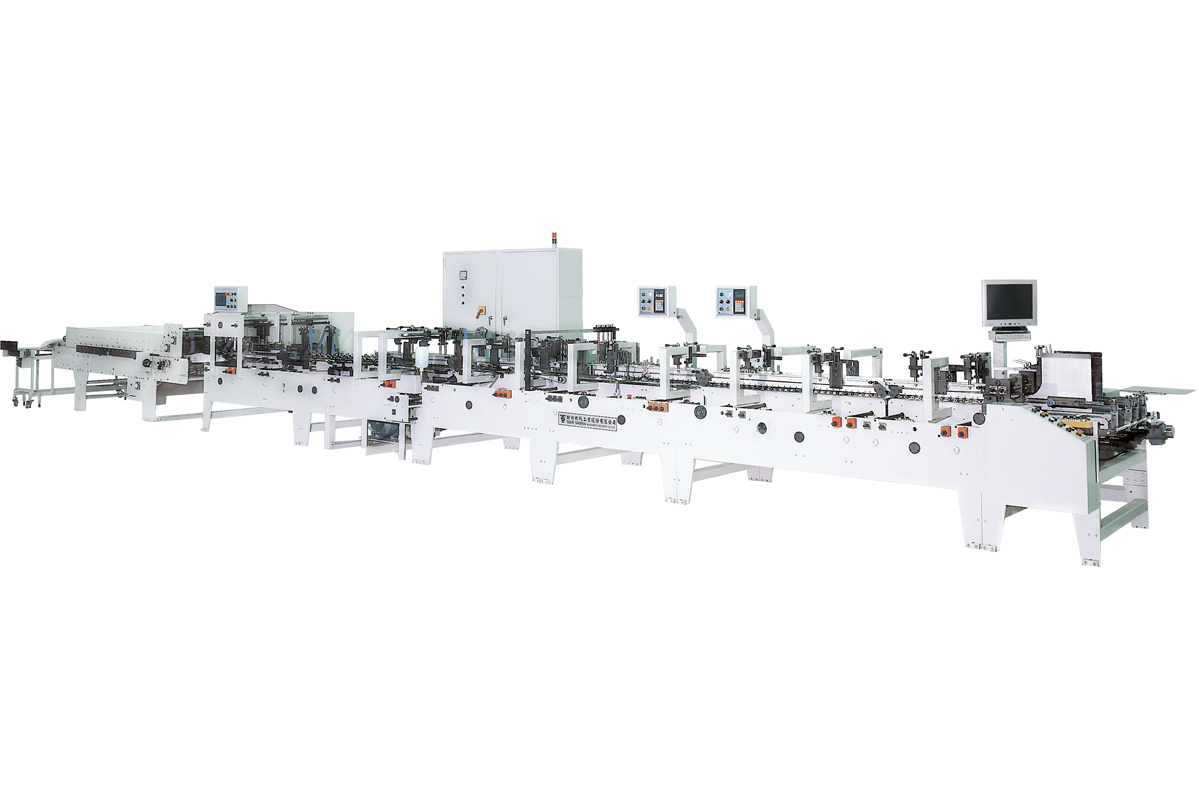

High Speed Folding and Gluing Machine
TS-1000NMWS/400
Stock Type | Cardboard, E-flute corrugated and decorated board |
Folding Capability | Straight line, double wall, crashlock bottom boxes, 4/6 corners |
Maximum Speed | MAX. 400m/min. |
Feeding | Automatic and continuous feeding. |
Glue Type | (For Glue Pot) Water based glue. |
Glue System | |
Power Required | |
Machine Weight | 9700Kg |
1. Equipped with wireless remote control for easy operation and highmobility.
2. Feeder with pneumatic and electrical adjustment, saving manpower.
3. Troubleshooting monitoring system for easy problem solving.
4. Motorized carrier adjustment. The middle carrier can be easily unloaded according to the production (box design) requirement.
5. Max. machine speed reach 400 m/min to meet with high production volume demand.
6. Driving system use high strength, low noise flat belt for high efficiency and easy maintenance.
7. Two servo motor driven back fold shafts. Suitable for 4-and 6-corner boxes, cake, gift and bottom folding boxes, and standard box production.
8. 4 nozzle cold-glue sprayer system and bottom gluing unit (2 sets). Easy to use and clean.
9. Upper compressor section is forward-backward adjustable and uses sponge-like belts for smooth transfer to conveyor section where product is stacked.
10. Standard features include touch screen on main machine (H.M.I) automatic speed control, photo sensor counter, volume setting and kicker device.
※ For general reference; customer’s specific designs are welcomed.
